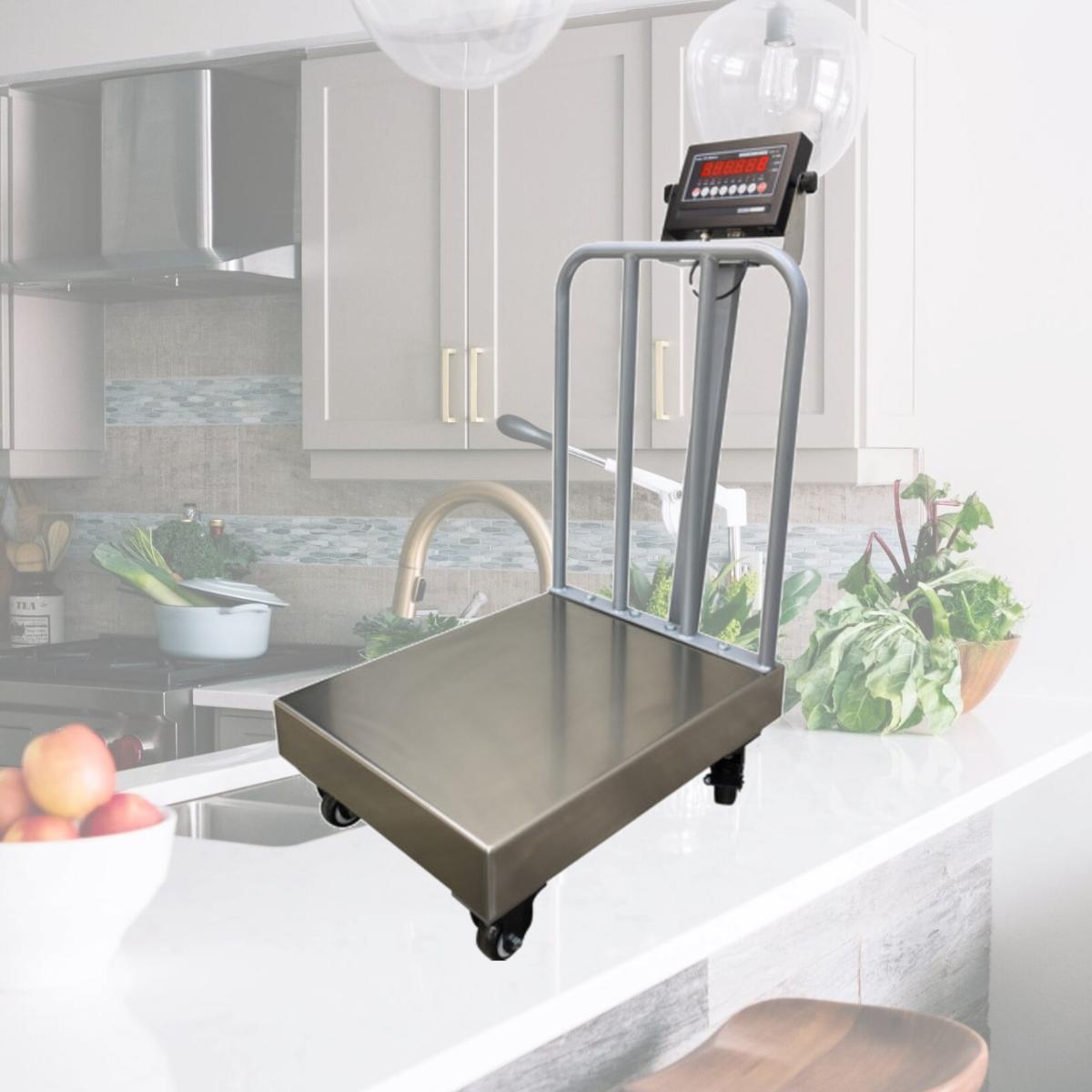

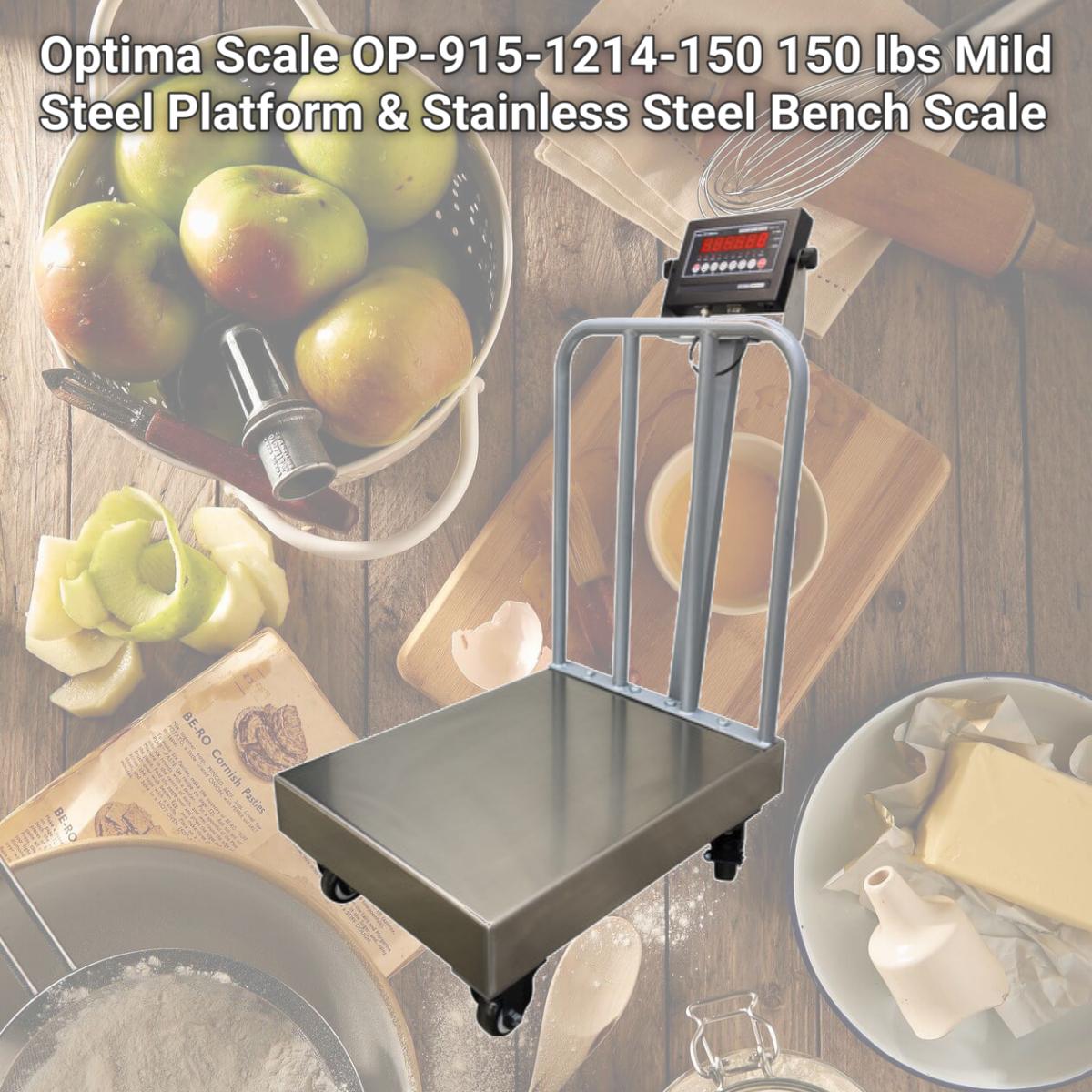

Ideal weighing solution for applications such as portion control, food processing, straight weighing or over/under weighing. High accuracy single point strain gauge aluminum load cell. Designed for speed and accuracy with an extremely heavy duty platform and rugged stainless steel enclosure. Ideal for busy shipping docks, outdoor markets, manufacturers, food processing and other bulk sales. Platform, shroud, indicator (Legal for Trade), load cells, column, level feet, and all necessary hardware.
Features- High resolution with overload protection
- Mild steel platform, with a 304 stainless steel tray for easy cleaning
- Adjustable tilt display for convenient viewing
- Aluminum environmentally sealed single point load cell
- Adjustable feet provides exceptional traction
- Standard removable column and wall mounting option
- OP-900 NTEP indicator with 6 digit, 1" display
- Check-weighing feature for quick portioning
- Built-in RS-232 communication port
- Level bubble
- NTEP class III, 5000 divisions
Specifications- Size: 12" x 14"
- Pan/Frame Material: Stainless Steel / Mild Steel
- Accuracy CLass (T-900): 5000 e
- Resolution: Display 30,000; ADC 2,000,000
- Zero Stability Error: TK0 < 0.1 V//K
- Span Stability Error: TKspn < ±6 ppm//K
- Sensitivity (Internal): 0.3 V/d
- Input Voltage: -30 ~ 30mV DC
- Excitation Circuit: 5 VDC, 4 wire connection (+Exec, -Exec, +Sig, -Sig); Maximum 6 x 350V load cells
- Power: AC100~250V; Rechargeable battery optional
- Temperature/Humidity: -10 deg ~ +40 deg ; ≤90%RH
- Storage Temperature: -40 deg ~ +70 deg
- Capacity: 150 x 0.02 lbs
- Weight: 23 lbs
