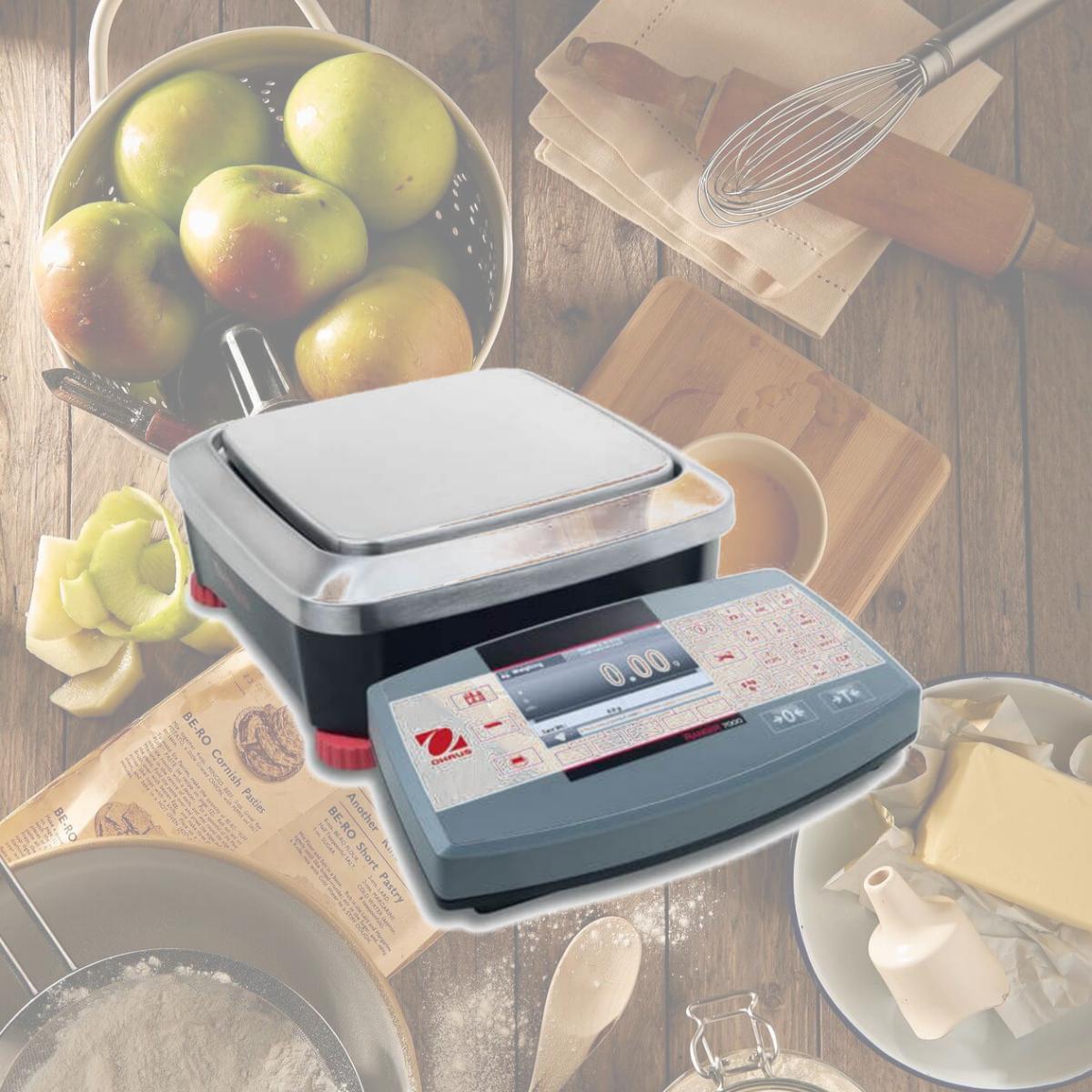

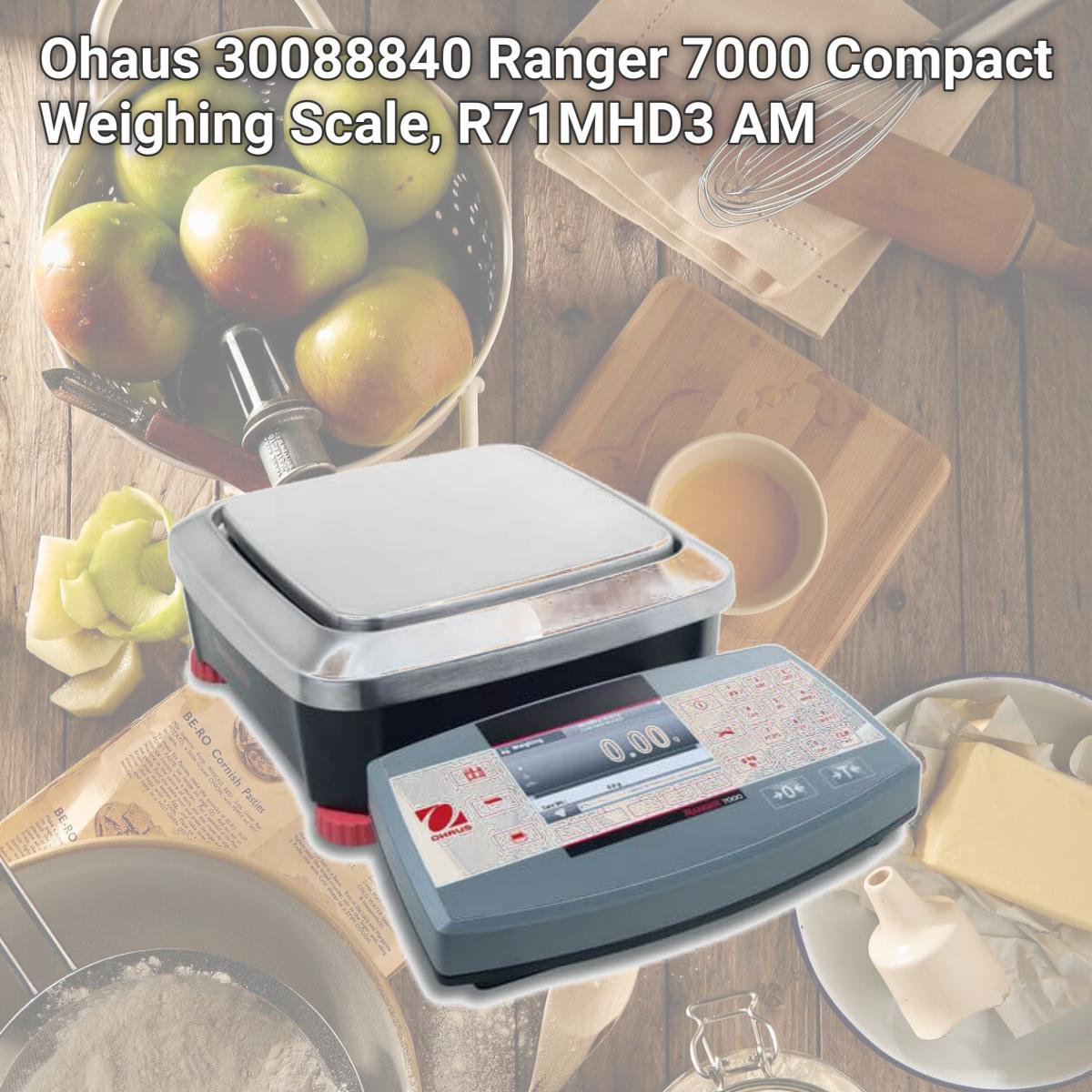

Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.
Applications:- Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis
Display:- 43" (109 mm) Full-color WQVGA graphic display with user-controlled brightness
Design Features:- Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare
Construction:- Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
Communication:- Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet GLP/GMP Data Output with Real Time Clock Data Transfer Function
Operation:- AC power (included) or rechargeable battery
Specifications- Maximum Capacity: 6 lb (3 kg)
- Readability: 0.00002 lb (0.01 g)
- Readability (Certified): 0.0002 lb
- Platform Size: 8.3 x 8.3 in.
- Battery Life: 9 Hours with Rechargeable Battery
- Second Scale Input: Yes
- Dimensions: 4.5 x 16.5 x 11 in.
- Display: 4.3''/10.9 cm TFT Graphic LCD
- Internal Calibration: InCal- Semi Automatic
- In-use cover: Included
- Legal for Trade: NTEP Certified, Measurement Canada Approved
- Linearity ±: 0.02 g
- Outputs: 3 In/4 Out digital I/O
- Platform Construction: Stainless Steel
- Power: AC Power (Included),Rechargeable Battery (Not Included)
- Protection Rating: IP54
- Tare Range: To capacity by subtraction
- Units of Measurement: Gram, Kilogram, Ounce, Pound, Pound:Ounce, Custom
- Working Environment: 50°F - 85°F, 80%RH, non-condensing (10°C - 30°C, 80%RH, non-condensing)
- Weight: 20.172 lbs
