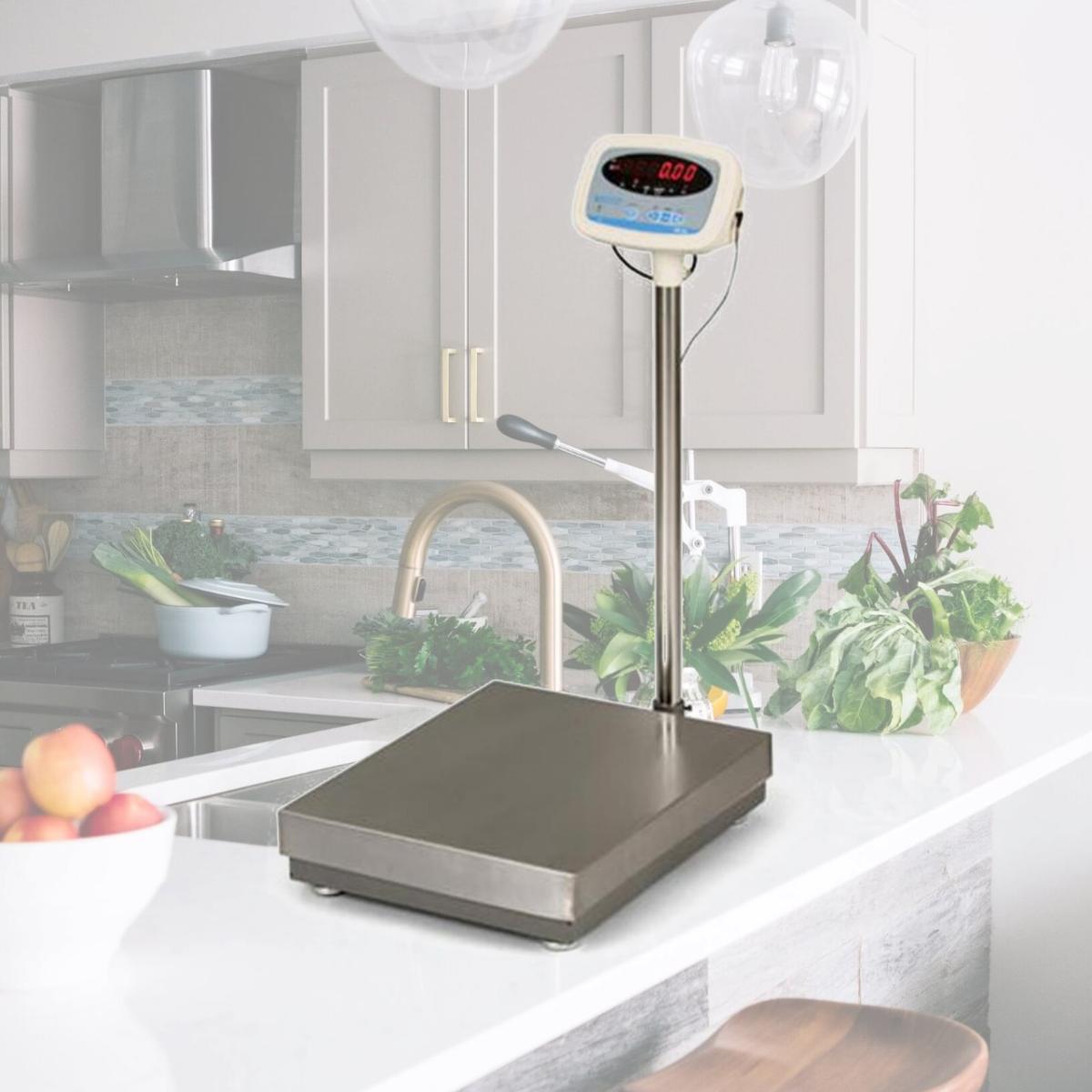

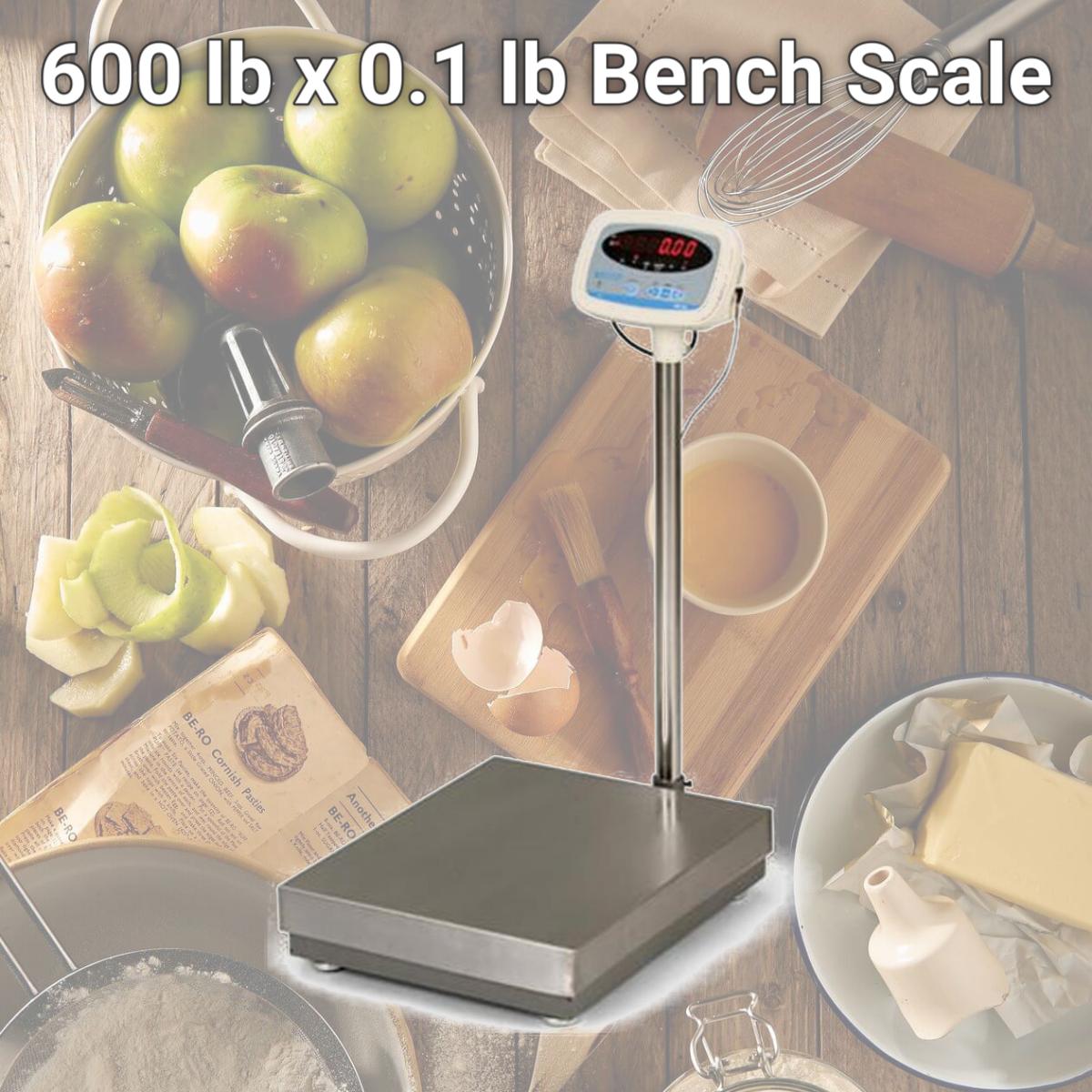

Brecknell Scales 816965001644 600 lb x 0.1 lb Bench Scale

The S100 is a low cost general purpose, self-contained industrial scale with RS-232 interface for simple non-trade weighing applications.

Column or Desk Mount Indicator- Attach the indicator to the stainless steel column to provide a total height of 36.5" (927 mm) or remote the indicator up to 48" (1220 mm) without the use of column.

RS-232 Interface- SBI 100 indicator can be configured for weight only or GTN via continuous output, print key, or stable weight. Choose bi-directional interface for communication to a PC.

ON/OFF Switch- Remove power from indicator to increase battery performance and life of product.

Auto Shut-off Timer- Adjustable from 1-15 minutes or Off.

Weight Hold Functions- Can be configurable for manual button release, automatic release on change in weight, or within +/- 3-50 scale divisions.

Internal Rechargeable Battery- Low battery and battery charging annunciators indicate status of lead-acid battery. Battery is charged while AC power is active.

Units Switching- Can be configured for LB/KG switching, LB only, or KG only.

Adjustable Resolution Setting- Factory default setting of 6,000 or 7,500 divisions can be modified to increase performance within certain applications.

Adjustable Scale Setting- Power on zero, AZT, 4 filter settings, weight stability, overload, baud rate and status bits.

Robust Design- Re-enforced painted mild steel base, stainless steel weight platter and pole, robust ABS plastic indicator with strain relief connections, and heavy duty adjustable foot assemblies.

Pan Size: 18" X 22" (457 mm x 559 mm).

Accuracy: 0.01% of full scale.

Construction: Stainless steel weight platter, painted mild steel base, ABS indicator.

Display: Six digit 0.8" (20 mm) high red LED display with 8 separate LED annunciators.

Annunciators: Net, zero, kg, lb, hold, low battery, battery charging, mains connected.

Power: AC/Mains power (120V AC @ 60Hz, 12 VDC, 500mA UL) and built-in rechargeable lead-acid battery.

Battery Life: Up-to 35 hours of continuous use.

Operating Temp: 41¦ F to 95¦ F (5¦ C to 35¦ C).

Auto-off: Selectable between 1 to 15 minutes after inactivity.

Function Keys: Function Keys- Power Switch, On/Off/Zero, Tare, Units, Hold/Print.

Tare: 100% subtractive.

RS-232: Standard 9 pin straight pass through interface connector, interface cable not included.

Packaging Contents: 5SBI 100 indicator, S100 base with load cell interface cable, power supply(s), SS mounting pole, indicator mounting hardware.

Approvals: Full FCC compliance, UL/CUL power adapter, CE, WEEE directive.

Capacity x Readability: 600 lb x 0.1 lb.
