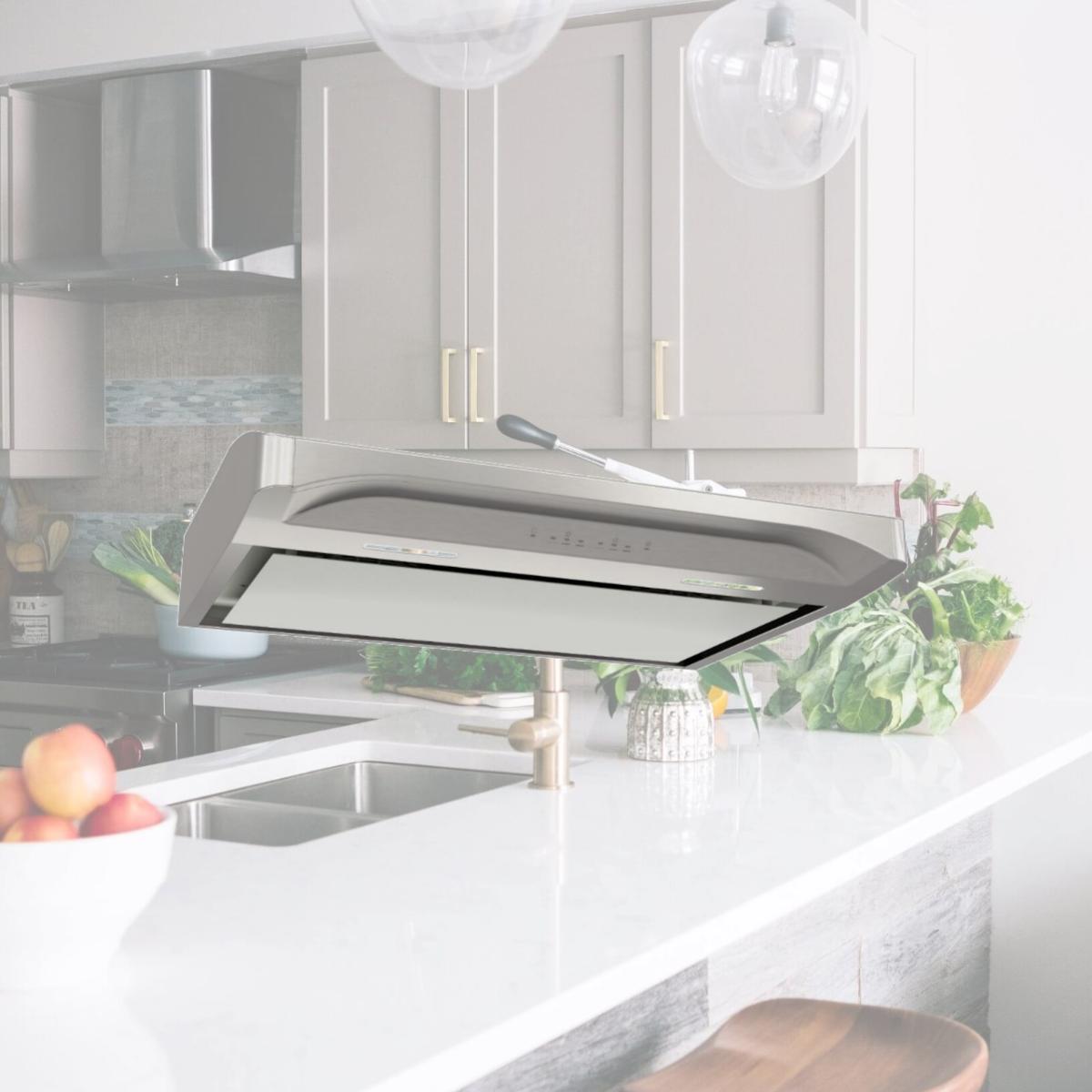

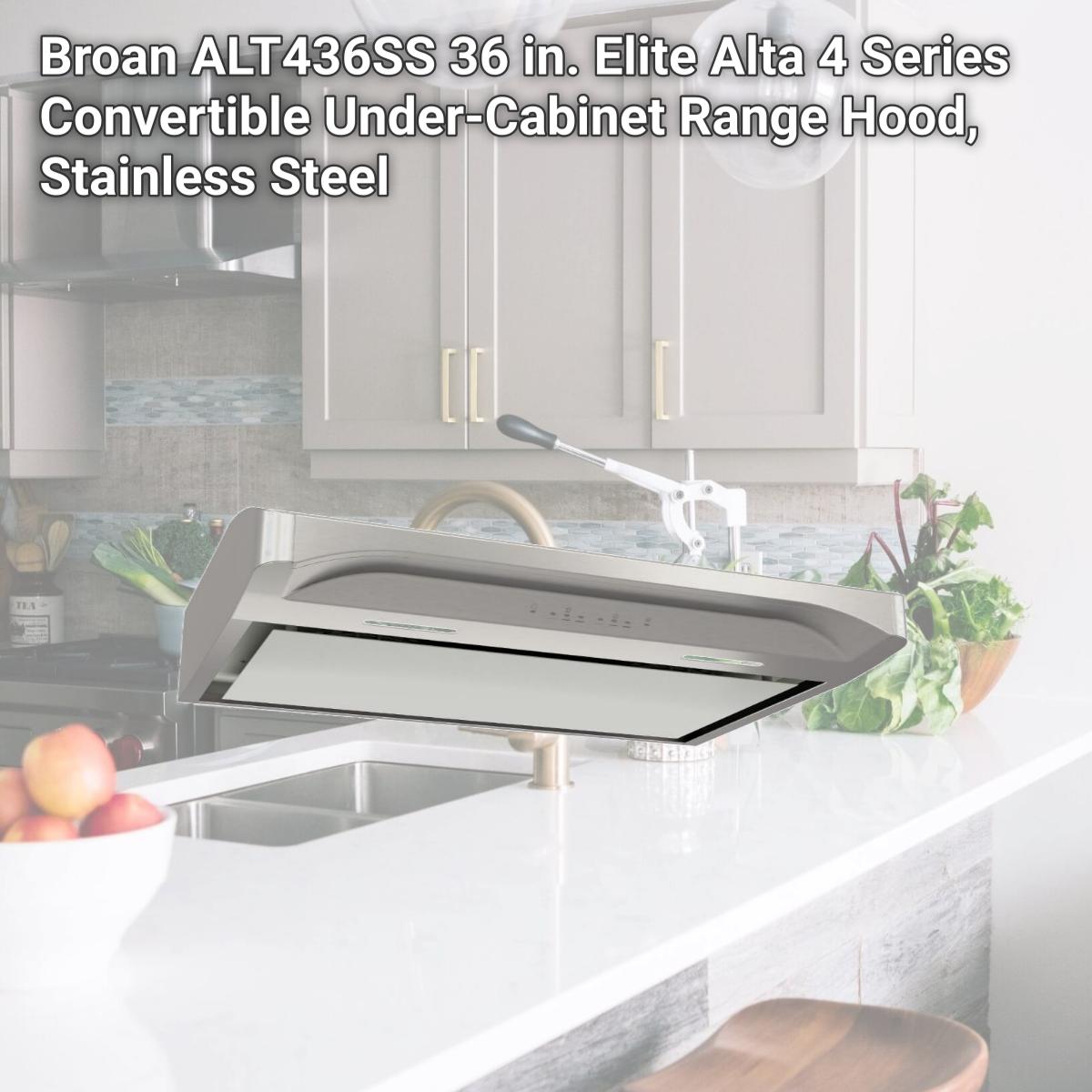

The sculpted lines of Alta bring an exciting, new choice to typical range hood shapes. Infrared controls, perimeter aspiration and LED lighting allow you to imagine new design possibilities while you experience the ultimate in capture efficiency.
The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 400 CFM
Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture
Features- Model replaced EQLD136SS
- Smooth-flow blower wheel design and high flow filters ensure quiet, less than 05 sones operation at normal speed
- Bright, three-level LED modules illuminate evenly and are tested in cooking environments to ensure long life without dimming
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Non-duct capable with use of charcoal filters, separately Hidden louvers on top of hood exhaust away from cabinetry
- Optional HCR3 handheld remote enables control from anywhere in the kitchen
- Color Temperature 3000 K
- Delay off feature runs the blower for 10 minutes after cooking to clear the air
Specifications- Finish: Stainless Steel
- Filter Type: Peripheral
- Lighting Type: LED
- Light Levels: 3
- Light Bulb Wattage: 4.5
- Speed Levels: 3
- Switch Control Type: Infrared
- Rated Voltage: 120
- Rated Amps: 1.9
- Capture Efficiency: 98.5
- CFM: 500
- Diameter: 7" Round
- Vent Type: Convertible Built-In
- Duct Direction: Horizontal/Vertical
- Wattage: 228
- Bulb: Integrated LED Module
- Light Color Temp: 3000
- Country of Origin: Mexico
- Depth: 22"
- Height 5"
- Width: 36"
